x-das
  • Stable big data collection through easy setup
  • Large amounts of data collecting and managing from various devices
  • Real-time user modeling (adding, changing, etc.)
  • Logger and alarm management through file or database
  • Convenient upper system linkage through OPC-UA
x-das


Solution optimized for big data collection

The most essential thing to achieve the goals of quality/production/time management is data collection. It is a common situation for companies that introduce and use only ERP or MES. The loss caused by human error is difficult to quantitatively convert, but the amount is quite large. X-DA is a solution that allows users to easily manage and monitor big data collected in real time from numerous device devices (PLC, Controller, IoT sensors, etc.) installed in various industrial sites. By stably collecting big data, it can be processed and operated in the form the user wants (DB storage, CSV file storage, real-time server connection). Since X-DAS uses OPC- UA, it has expandability that can be easily applied to various types of data and devices, not specific memory.

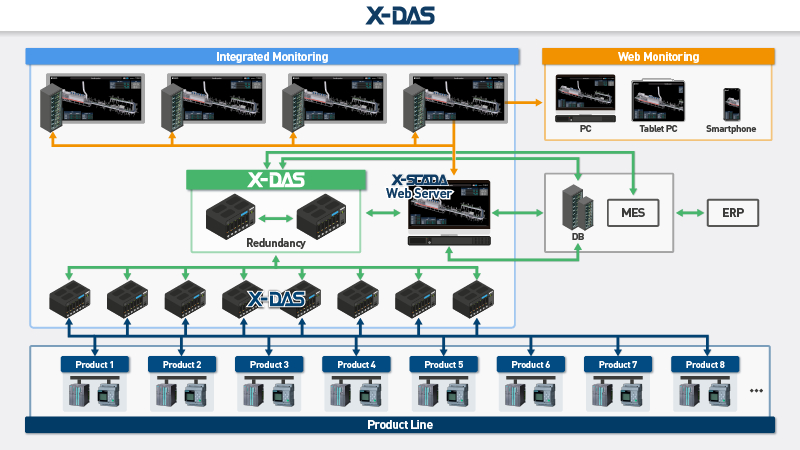

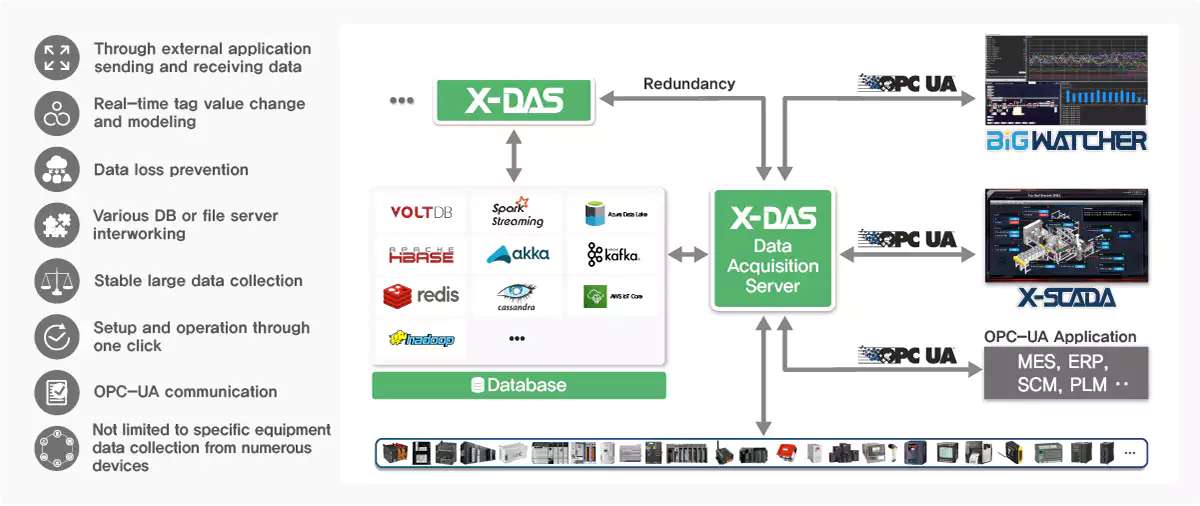

Understanding of X-DAS Structure Understanding of
X-DAS Structure

X-DAS Structure

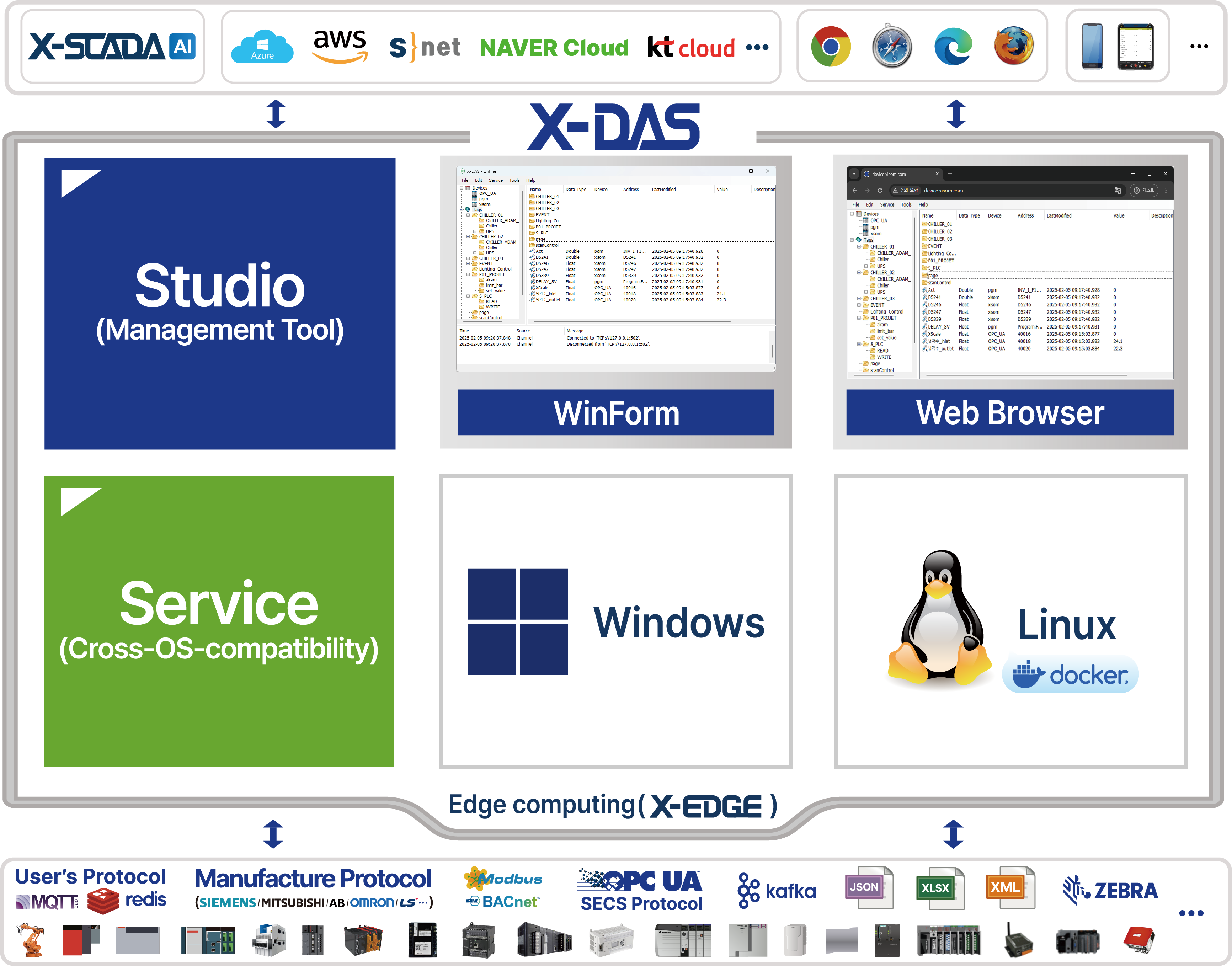

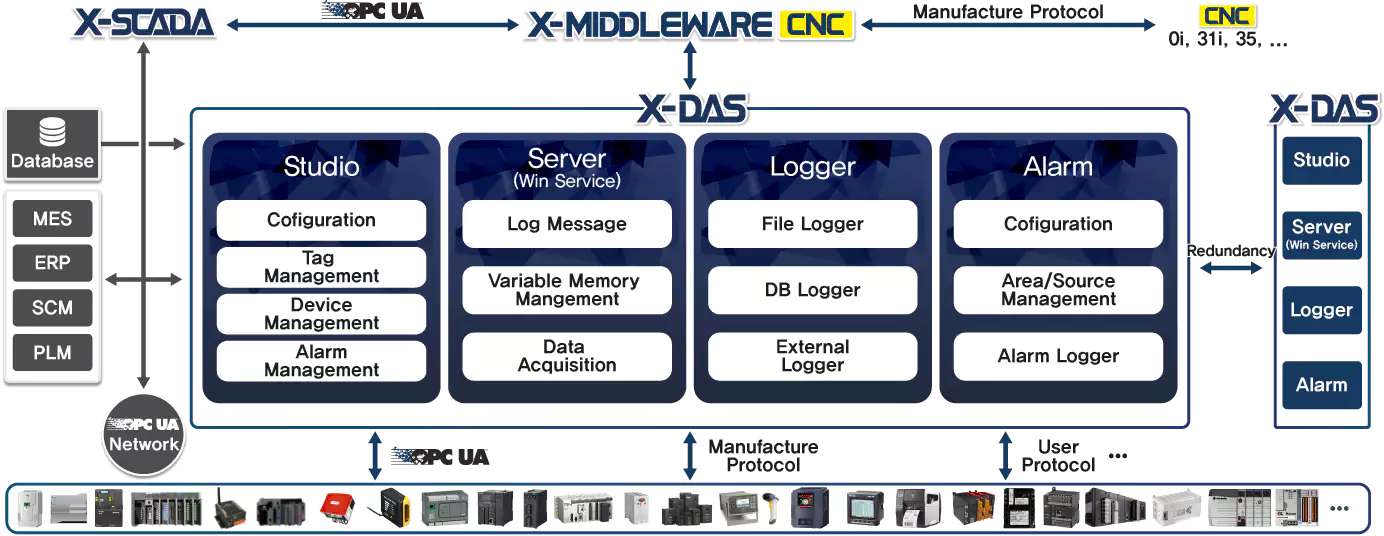

X-DAS Function

X-DAS Function


X-DAS has numerous communication protocols built in, X-DAS has numerous communication protocols built in, OPC-UA is supported as standard

OPC-UA is supported as standard

An integrated network environment can be established easily and reliably and can be designed to exchange data with various automation control devices (PLC, Control Devices etc.) that are widely used at high speed. Data can be exchanged with other software through OPC-UA, and database systems such as MS-SQL, Orcale, MySQL, SQLite, PostgreSQL, and others can be utilized. By supporting Modbus, device-specific protocols, and user-defined protocols, user can configure automation devices and data communication as desired.

AB Ethernet/IP
AP-EIP Site shortcut Follow shortcut
AB Ethernet/IP DHRIO
AP-EIP-DHRIO Site shortcut
AB Ethernet/IP-PCCC
AP-EIP-PCCC Site shortcut
OMRON FINS Ethernet
OMRONEthernet Site shortcut
MELSEC MC Protocol Ethernet
MELSECEthernet Site shortcut Follow shortcut
MELSEC FX Ethernet
MELSECFXSerial Site shortcut Follow shortcut
Panasonic PLC Ethernet
panasonic_PLC Site shortcut
RS Automation Xnet Ethernet
RSAutomationEthernet Site shortcut Follow shortcut
LSIS GLOFA FEnet
LSISGLOFACnet Site shortcut
LSIS XGT FEnet
LSISXGTFEnet Site shortcut Follow shortcut
GE SRTP Ethernet
GESRTPEthernet Site shortcut
Siemens S7 Ethernet
SiemensS7Ethernet Site shortcut
KEYENCE TCP
Keyence_tcp Site shortcut
Modbus TCP
ModbusTCP Site shortcut Follow shortcut
Modbus RTU Over TCP
ModbusRTUoverTCP Site shortcut
Modicon TCP
Modicon Site shortcut
MQTT Subscriber
MQTTSubscriber Site shortcut
User-Defined Ethernet Master
User-DefinedEthernetMaster
User-Defined Ethernet Slave
User-DefinedEthernetSlave

Neteye Digital Server
RTPCorp Ethernet
Cimon Ethernet
Site shortcut Follow shortcut
Turck Modbus TCP
Site shortcut
AND Balance Serial Over TCP
Site shortcut
ATAGO Refractometer Serial Over TCP
Site shortcut
Mettler Toledo pH Meter Serial Over TCP
TOA DKK pH Meter Serial Over TCP
Site shortcut
KEM GVA-700 Serial Over TCP
Site shortcut
KEM GVA-500 Serial Over TCP
Site shortcut
SOMEX DELTA HI-E Serial Over TCP
KMECMESIN Orbis TE Serial Over TCP
Site shortcut
CAS HB Balance Serial Over TCP
Mark-10 MTT01-50 Serial Over TCP
OMRON FINS Serial
OMRONSerial Site shortcut
Panasonic PLC Serial
panasonic_PLC Site shortcut
MELSEC MC Protocol Serial
MELSECSerial Site shortcut
MELSEC FX Serial
MELSECFXSerial Site shortcut
RS Automation Serial
RSAutomationSerial Site shortcut
LSIS XGT Cnet(Serial)
LSISXGTCnet Site shortcut
LSIS Master-K Loader
LSISMaster-KLoader Site shortcut
LSIS Master-K Cnet(Serial)
LSISMaster-KCnet Site shortcut
LSIS GLOFA Loader
LSISGLOFALoader Site shortcut
LSIS GLOFA Cnet(Serial)
LSISGLOFACnet Site shortcut
Advantech ADAM Serial
AdvantechADAMSerial Site shortcut Follow shortcut
GE SNP Serial
GESNPSerial Site shortcut
KEYENCE Serial
Site shortcut
GSM/WCDMA SMS Modem
GSM_WCDMA_SMSModem Site shortcut
Modbus RTU
ModbusRTU Site shortcut
Modbus ASCII
ModbusASCII Site shortcut
Modicon RTU/ASCII
Modicon Site shortcut
Toshiba MESL
ToshibaMESL Site shortcut

Turck Modbus RTU
Site shortcut
Turck Modbus ASCII
Site shortcut
Cimon Serial
Site shortcut
Advantech PCI DAQ
AdvantechPCIDAQ Site shortcut
CSV / TXT Access
csv_txt Follow shortcut
DDE Client
ddc_client Follow shortcut
JSON Access
json Follow shortcut
Kafka Client
Kafka Client Site shortcut
XML Access
xml Follow shortcut
Zebra Middleware Client
Zebra Middleware Client Follow shortcut Site shortcut
Excel Spreadsheet
ExcelSpreadsheets Follow1 shortcut Follow2 shortcut
Execute
Execute Follow shortcut
OPC UA Client
OPC UA Site shortcut
OPC DA Client
OPC DA Follow shortcut
Redis Client
Redis Client Site shortcut
HighWay101 Caster Tuner
high_way101 Follow shortcut
Web Request
Web-Request Site shortcut

Turck Cloud
Site shortcut


X-DAS

X-DAS
X-DAS

X-DAS

X-DAS(Studio + Server)

ver 1.1.10

get_app Download
X-DAS

X-DAS

X-DAS(Studio + Server)

ver 1.1.10

get_app Download


X-DAS is the best software for collecting and managing large amounts of data


Experience X-DAS through videos


Site applications with X-DAS

Lotte Chilsung Beverage
Lotte Chilsung Beverage
  • Big data collection for digital transformation infrastructure construction
  • Data monitoring in the integrated control center (ICC)
  • Large data collection for monitoring
POSCO Chemical
POSCO Chemical
  • Big data collection through OPC Server
  • Data collection and storage according to user settings (file or DB)
Dongkuk Industry Co., Ltd.
Dongkuk Industry Co., Ltd.
  • Collection of various data for each facility
  • Large data big data for predictive maintenance
DONGAH TIRE & RUBBER
DONGAH TIRE & RUBBER
  • Collection of various data for each facility
  • Large data big data for predictive maintenance
SHINSHIN
SHINSHIN
  • Collecting and managing large amounts of data to advance smart factories
  • Real-time data monitoring
TURCK
TURCK
  • Large data collection and cloud connection
  • Data monitoring and management for facility and line improvement
Korea Polytechnic University New Technology Education Center
Korea Polytechnic University New Technology Education Center
  • CNC equipment detailed data collection
  • X-MIDDLEWARE linkage using collected data
