X-SCADA AI

Design Your Smart Site as if Drawing, X-SCADA AI

No-Coding, Smart Design

Limitless Dev

Limitless and Free
Development Scalability

Easy Design

User-Friendly UI
as Easy as PowerPoint

AI Vision

Precise Process Control
via Intelligent Vision

Data Insight

Visualization Catching
Thousands of Data at Once

Direct Connect

Upper System(MES/ERP)
Integration without Middleware

Total Platform

Integrated Monitoring from
Units to Entire Processes

UI that Surpasses PowerPoint,
Field Integrated Control Platform
X-SCADA AI

X-SCADA AI is a next-generation development platform

that integrates field systems via powerful scalability,

operating processes safely using data and AI. By adding

user-centric AI tech to SCADA's core features, it easily

builds any smart environment from Factory to Smart City.

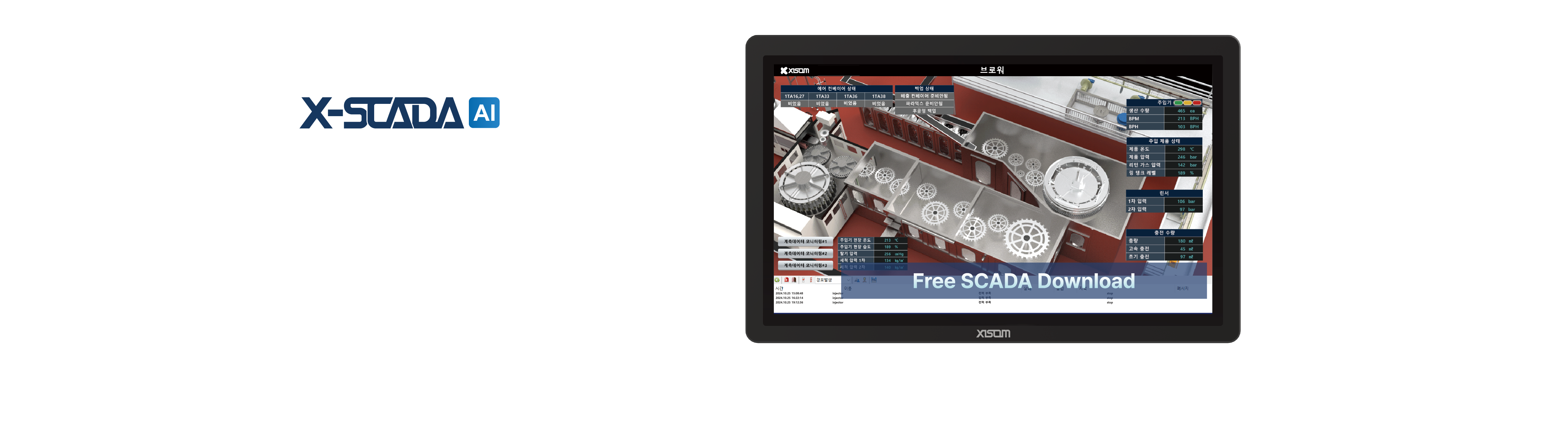

X-SCADA AI operation screen example displaying real-time manufacturing process and warehouse status with 3D graphics and monitoring dashboards. (Keywords: industrial automation HMI, smart factory dashboard, process control system, energy efficiency monitoring, real-time alarm management)

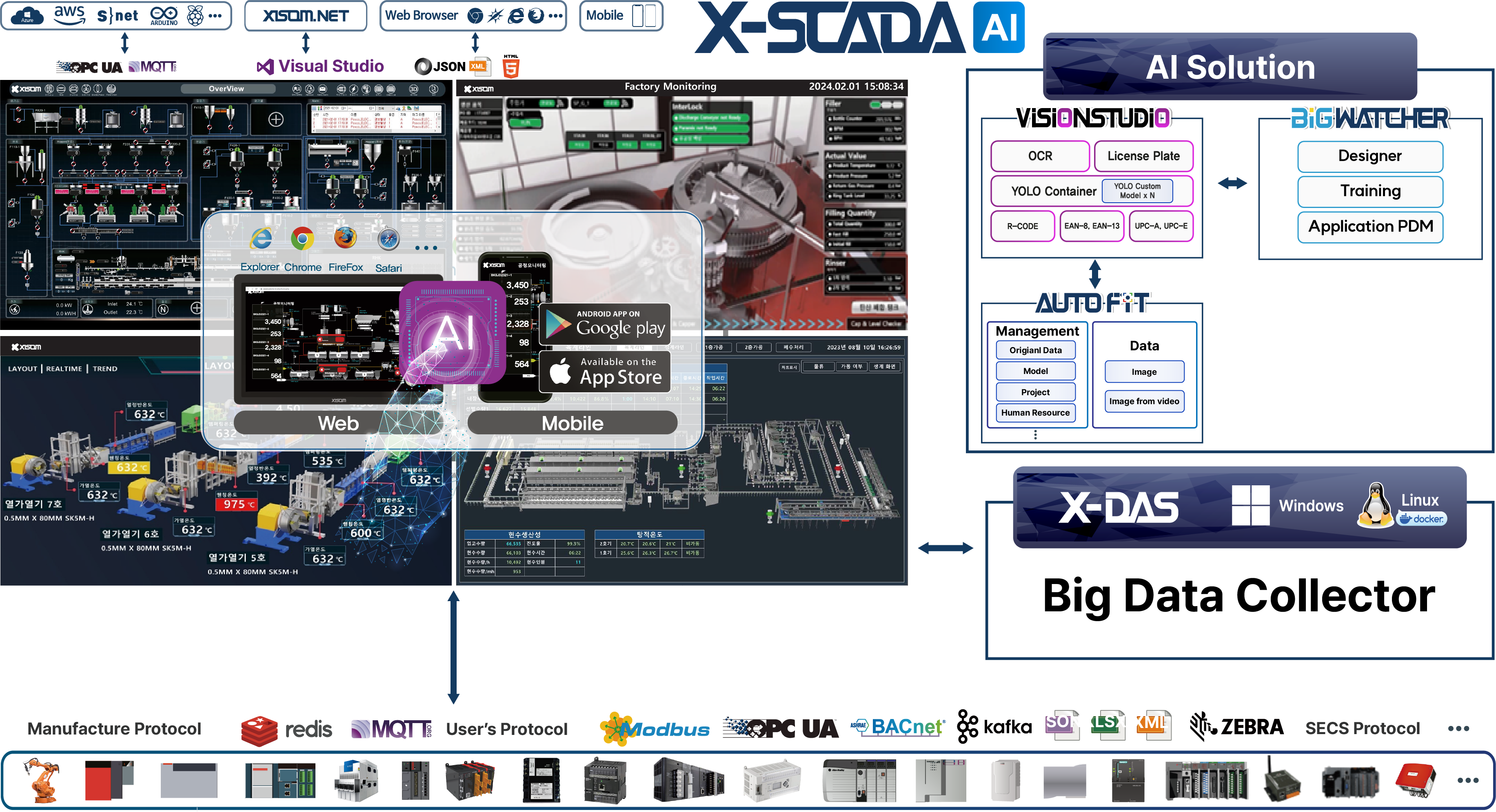

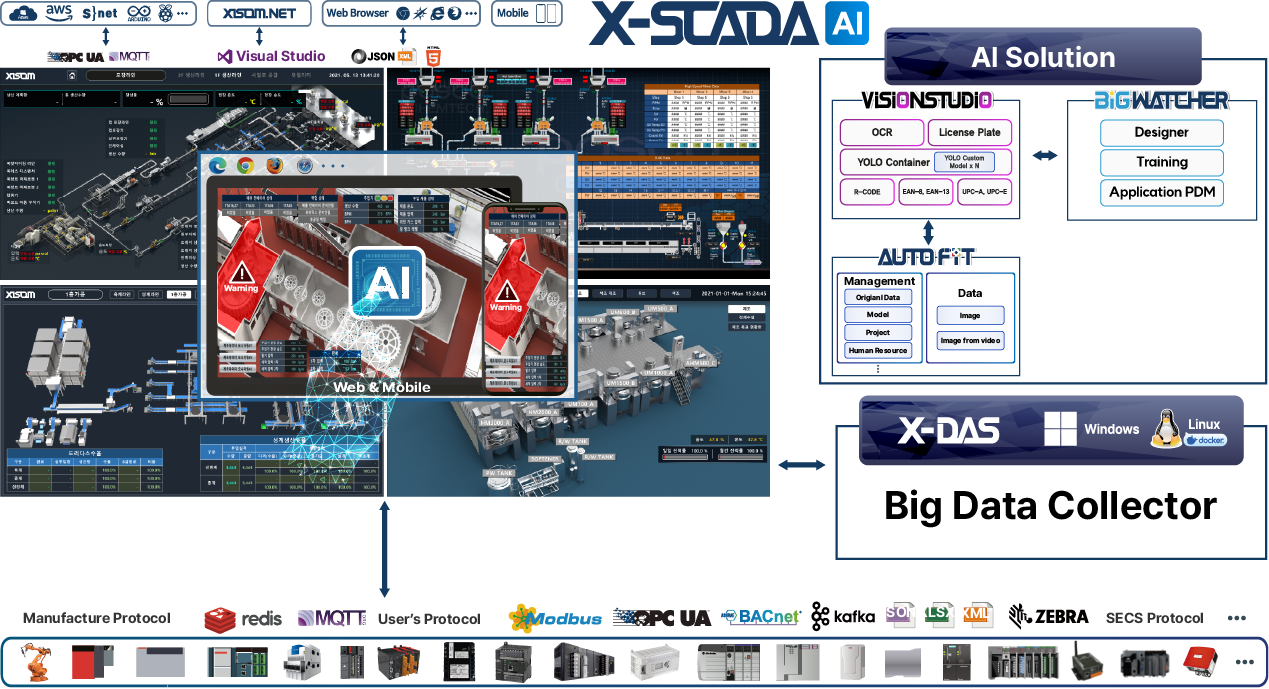

System architecture diagram demonstrating industrial data collection via Ethernet/Serial protocols, processed through X-DAS Big Data Collector into X-SCADA AI platform, integrated with AI Solutions, and visualized via SVGLINK for web/mobile users. (Keywords: X-SCADA AI, X-DAS, AI Solution, VISIONSTUDIO, AUTOFIT, BIGWATCHER, Protocol, Siemens, Modbus, MQTT, OPC UA, JSON, HTML5, SVGLINK, Web, Mobile)

FUNCTION

Convenient and easy GUI surpassing PowerPoint
Real-time free provision of SVG Images & Smart Symbols
Art Widgets and Charts for diverse data visualization
Multi-device support and ultra-high-speed network redundancy
Support for Relational, Time-series, and In-memory DBs
Convenient Excel-based reporting system
Simple process management via recipes and scenarios
Moving text features using animation effects
Network status check via IP scanning

IP/USB Camera control & Streaming Service
Project screen capture based on alarms and conditions
Full Web/Mobile compatibility / HTML5 & HTTPS support
Tag value modification & SQL execution via schedules
Real-time historical data management
Secure system via user grade and object security policies
Exclusive Treeview UI and layout support
Communication connection status check per device & tag

AI VISION

ANPR (License Plate Recognition)
QRCodeReader (All QR & Barcode recognition)
TesseractOCR (Multiple character recognition)
VISION STUDIO (Modularization via No-Coding)
Yolo (Object type & position recognition)

Real-time Free Provision of Various SVG Images for Design Convenience

SVG LINK

SMART SYMBOL

PACKAGE

PROJECT

Seamless Compatibility with PLCs and Legacy Devices Worldwide

X-SCADA AI Protocols for 3C: Compatibility, Connectivity, Common

Connection Guide Development Inquiry

Seamless PLC & Legacy Device Compatibility

Built-in drivers for leading PLCs—Siemens, Mitsubishi, Allen-Bradley, Schneider, GE and LS—enable immediate integration without installing additional drivers.

AB Ethernet/IP

AB Ethernet/IP DHRIO

AB Ethernet/IP-PCCC

Siemens S7 Ethernet

Siemens S7 Plus Ethernet

MELSEC A Ethernet

MELSEC Ethernet

MELSEC FX Ethernet

GE SRTP Ethernet

Schneider Modicon

OMRON Ethernet

KEYENCE Ethernet

Panasonic Ethernet

RS Automation Ethernet

RTP Communication

LSIS GLOFA FEnet

LSIS XGT FEnet

DNP 3.0 Ethernet

Modbus RTU Over TCP

Modbus TCP

MQTT Subscriber

Turck Modbus TCP

Brother CNC

IEC60870-5-104

User Custom Frame Ethernet

User-Defined Ethernet Master

User-Defined Ethernet Slave

AMQP 0-9-1 Client

MELSEC FX Serial

MELSEC Serial

GE SNP Serial

Schneider Modicon ASCII

Schneider Modicon RTU

KEYENCE Serial

OMRON Serial

Panasonic Serial

Toshiba MESL

Toshiba TC200

LSIS GLOFA Cnet / Loader

LSIS Master-K Cnet / Loader

LSIS XGT Cnet

IEC60870-5-101

DNP 3.0 Serial

Modbus ASCII

Modbus RTU

Advantech ADAM Serial

GSM/WCDMA SMS Modem

Turck Modbus RTU

Turck Modbus ASCII

User Custom Frame Serial

User-Defined Serial Master

User-Defined Serial Slave

OPC UA Client

OPC DA Client

OPC XML-DA Client

IEC61850 MMS Client

Fanuc Focas Protocol

Makino CNC

BACnet

Advantech PCI DAQ

CC-Link IE Control

CSV, TXT Access

DDE Client

Excel Spreadsheet

Execute

File Selector

HighWay101

Kafka Client

Ping Test

RabbitMQ Client

Redis Client

Simulation

SNMP

System Resources

Turck Cloud

Web Request

XML, JSON Access

Zebra MiddleWare Client

X-SCADA AI differentiates itself from existing SCADA designs
and possesses a limitless DNA.

Button to X-SCADA AI YouTube introduction video showing its limitless design differing from existing SCADA

Button to YouTube video introducing key functions of X-SCADA AI packed with the latest technology

Enterprise Security with Global Certification & Multi-Layer Encryption

From global certification to mutual certificate validation, securely protect data across plant and enterprise systems.

Category	Key Security Features	Functions & Benefits
Certification	Global Standards Compliance	Officially certified solution validated by OPC Foundation CTT testing (Certificate No. 2209CE00F2), ensuring high communication reliability.
Data Security	Strong Encryption & Tamper Protection	Applies OPC UA security policies and SHA-256 digital signatures to prevent packet interception and unauthorized data modification.
Access Control	Authenticated Session Security	Strict session management based on the certified Standard UA Server Profile architecture, allowing access only to authorized clients and systems.
User Security	Key-Based, Granular Access Control	User security keys and account-based login control page- and object-level access and operations, blocking unauthorized users.
Device Authentication	Mutual X.509 Digital Certificates	Mutual certificate verification between server and client blocks unauthorized devices and spoofing attempts.
Audit Trail	Timestamped Operation & Control Logs	Supports UTC/local timestamps and alarm/event DB logging. Automatically records value changes and control actions via SQL for full process traceability.
Security Flexibility	Flexible Encryption Policies	Select and apply security profiles flexibly to match each plant network environment.
Legacy Security	Securing Legacy Protocols	Collects data from legacy protocols (Modbus, OPC DA, etc.) and transfers it through encrypted OPC UA channels to strengthen upstream communication security.

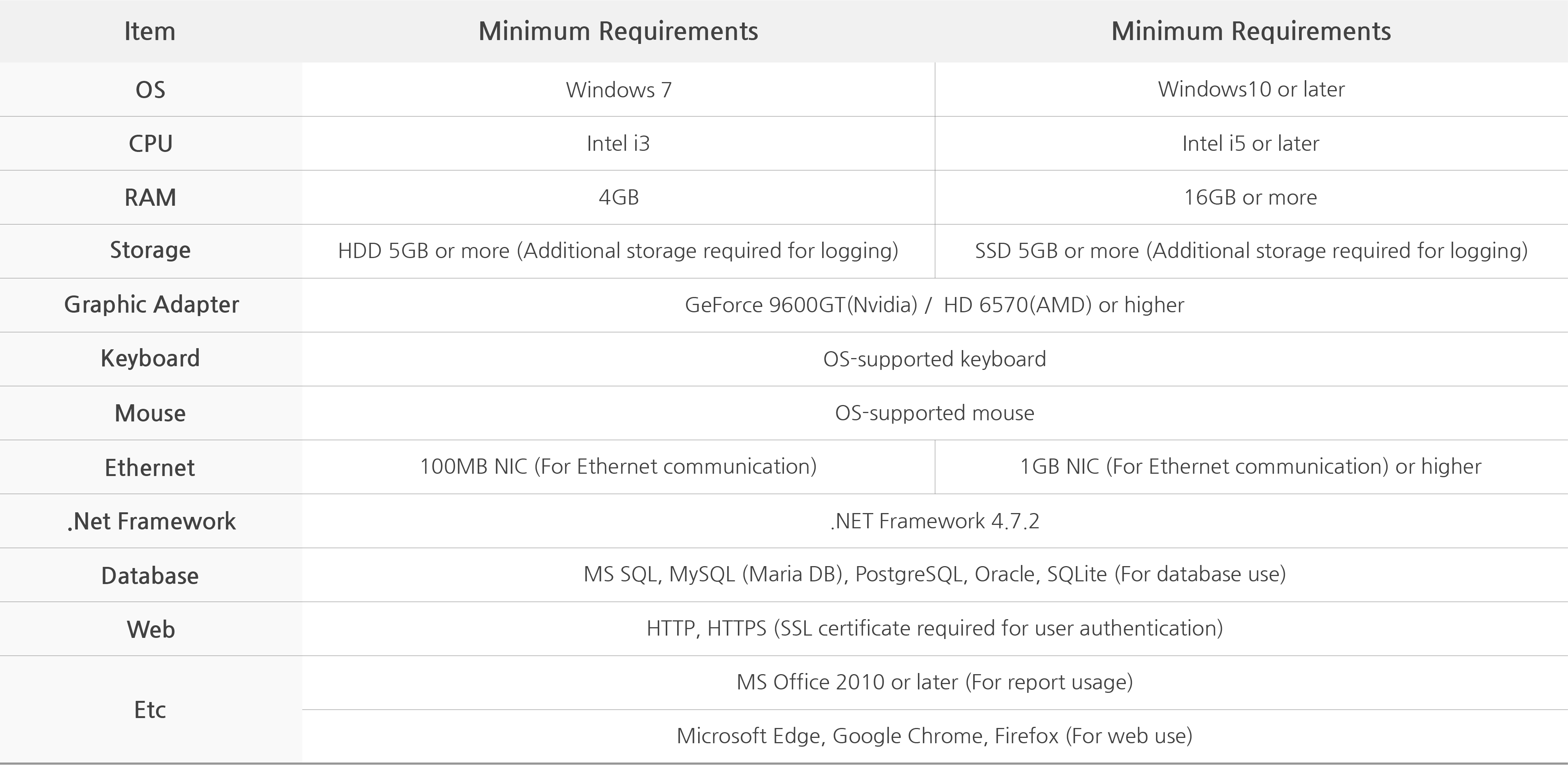

X-SCADA AI System Recommendations for Optimal Performance

Item	Minimum Spec	Recommended Spec
OS	Windows 7	Windows 10 or higher
CPU	Intel i3	Intel i5 or higher
RAM	4GB	16GB or higher
Storage	HDD 5GB or higher (Additional storage required when using logging)	SSD 5GB or higher (Additional storage required when using logging)
Graphic Adapter	GeForce 9600GT(NVIDIA) / HD 6570(AMD) or higher
Keyboard	OS-supported keyboard
Mouse	OS-supported mouse
Ethernet	100MB NIC (When using Ethernet communication)	1GB NIC or higher (When using Ethernet communication)
.NET Framework	.NET Framework 4.7.2
Database	MS SQL, MySQL(MariaDB), PostgreSQL, Oracle, SQLite (When using DB)
Web	HTTP, HTTPS (SSL certificate required when using)
Etc	MS Office 2010 or higher (When using reports)
Etc	Microsoft Edge, Google Chrome, Firefox (When using Web)
